PIR Sensor Series

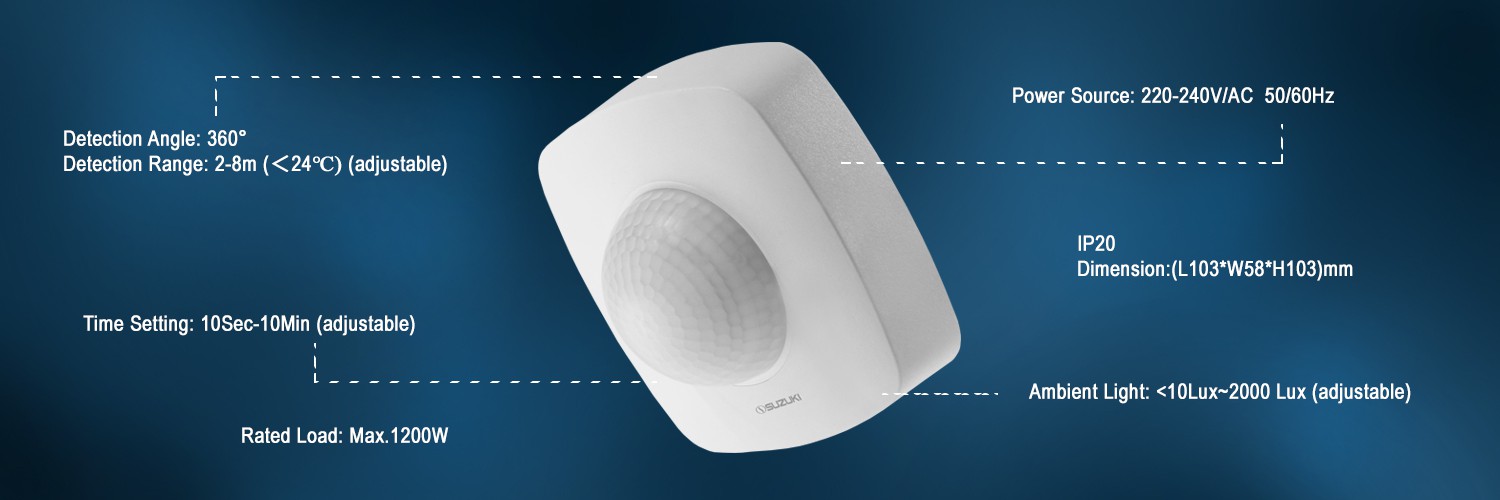

Sensor SU-PI-360CA11

Suzuki SBS-M202

Specifications

Detection Angle

360°

Detection Range

2-16m(＜24℃）

Time Setting

10Sec-10Min (adjustable)

Power Source

220-240V/AC  50/60Hz

Rated Load

Max.2000W

Ambient Light

<10Lux~2000 Lux (adjustable)

IP54  Dimension

(L103XW58XH103)mm

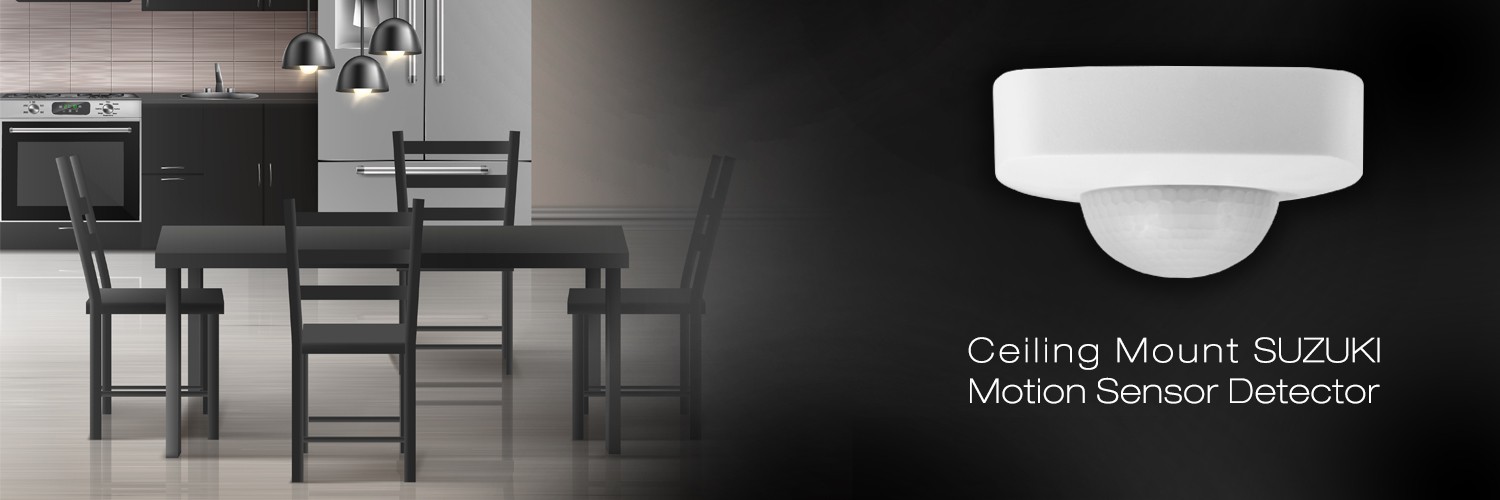

Sensor SU-PI-360CA10

Suzuki SBS-M202

Specifications

Detection Angle

360°

Detection Range

2-8m(＜24℃）(adjustable)

Time Setting

10Sec-10Min (adjustable)

Power Source

220-240V/AC 50/60Hz

Rated Load

Max.1200W

Ambient Light

<10Lux~2000 Lux (adjustable)

IP54 Dimension

(L103XW58XH103)mm

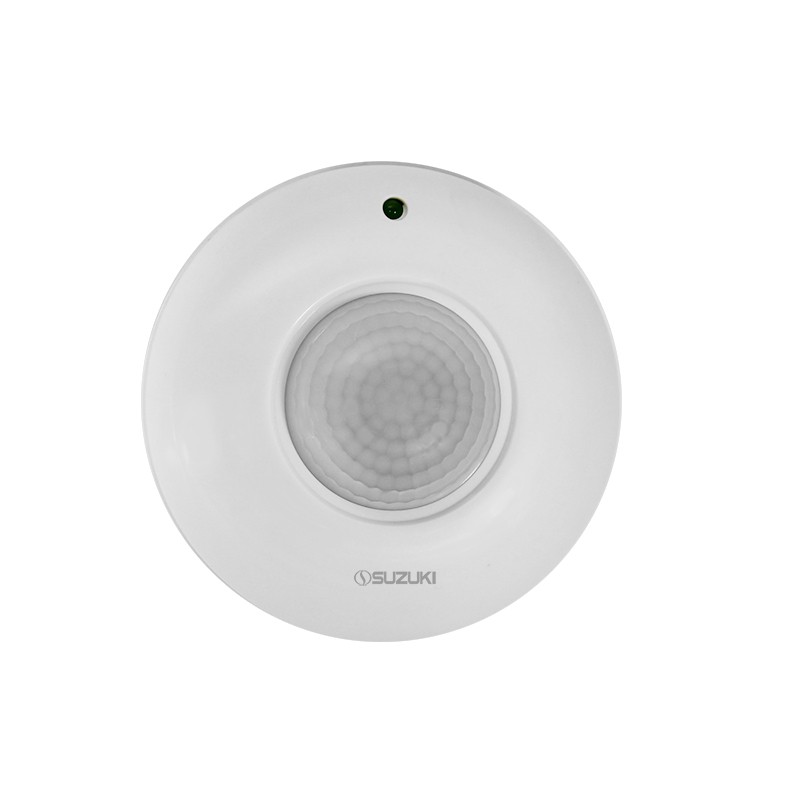

Sensor SU-PI-360CA09

Specifications

Detection Angle

360°

Detection Range

12m(＜24℃）

Time Setting

10Sec-7Min (adjustable)

Power Source

110~240V/AC  50/60Hz

Rated Load

Max.1200W

Ambient Light

<10Lux~2000 Lux (adjustable)

IP20 Dimension

(D115XH55)mm

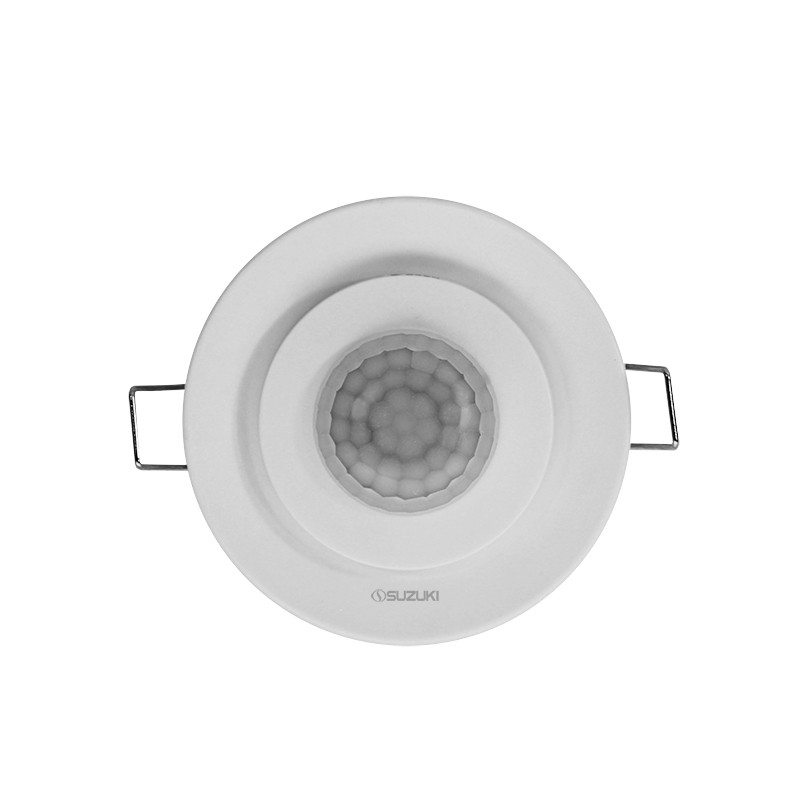

Sensor SU-PI-360CB07

Specifications

Detection Angle

360°

Detection Range

Max.8m(＜24℃

Time Setting

10Sec-10Min (adjustable)

Power Source

220-240V/AC 50/60Hz

Rated Load

Max.1200W

Ambient Light

<10Lux~2000 Lux (adjustable)

IP20 Dimension

(D100XH62)mm

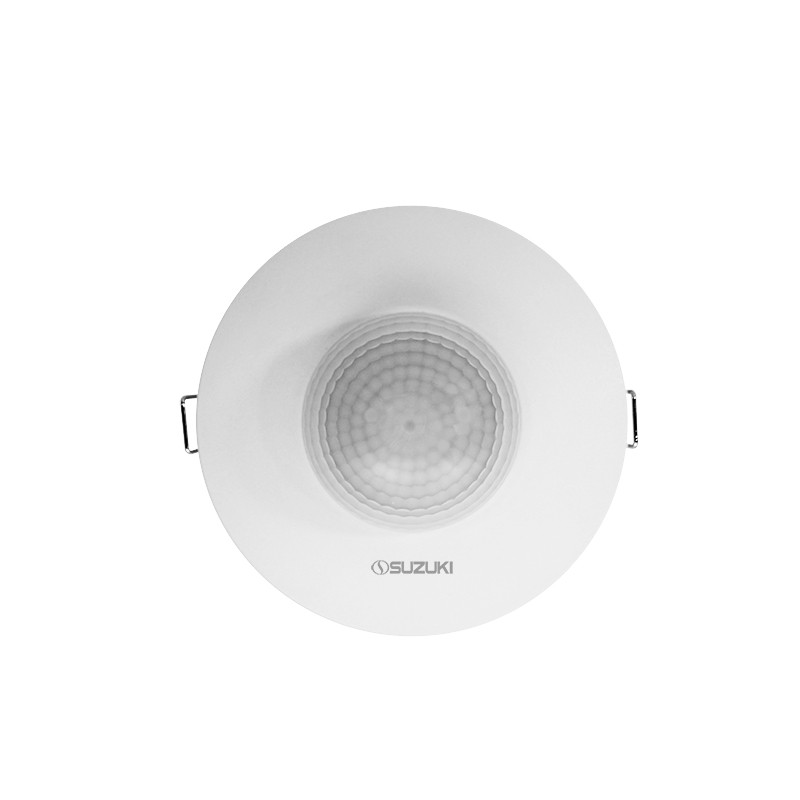

Sensor SU-PI-360CB05

Specifications

Detection Angle

360°

Detection Range

Max.8m(＜24℃

Time Setting

10Sec-7Min (adjustable)

Power Source

220-240V/AC 50/60Hz

Rated Load

Max.2000W

Ambient Light

<10Lux~2000 Lux (adjustable)

IP20 Dimension

(D110XH90)mm

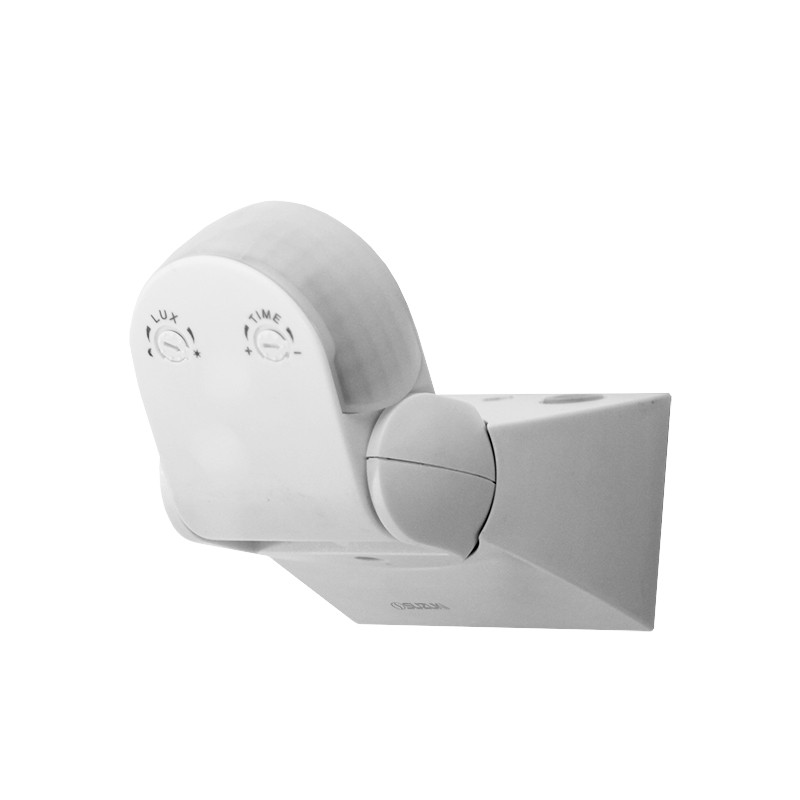

Sensor SU-PI-250WA02

Specifications

Detection Angle

250°

Detection Range

12m(＜24℃）

Time Setting

10Sec-10Min (adjustable)

Power Source

110~240V/AC  50/60Hz

Rated Load

Max.1200W

Ambient Light

<10Lux~2000 Lux (adjustable)

IP20 Dimension

(L80XW128XH51)mm

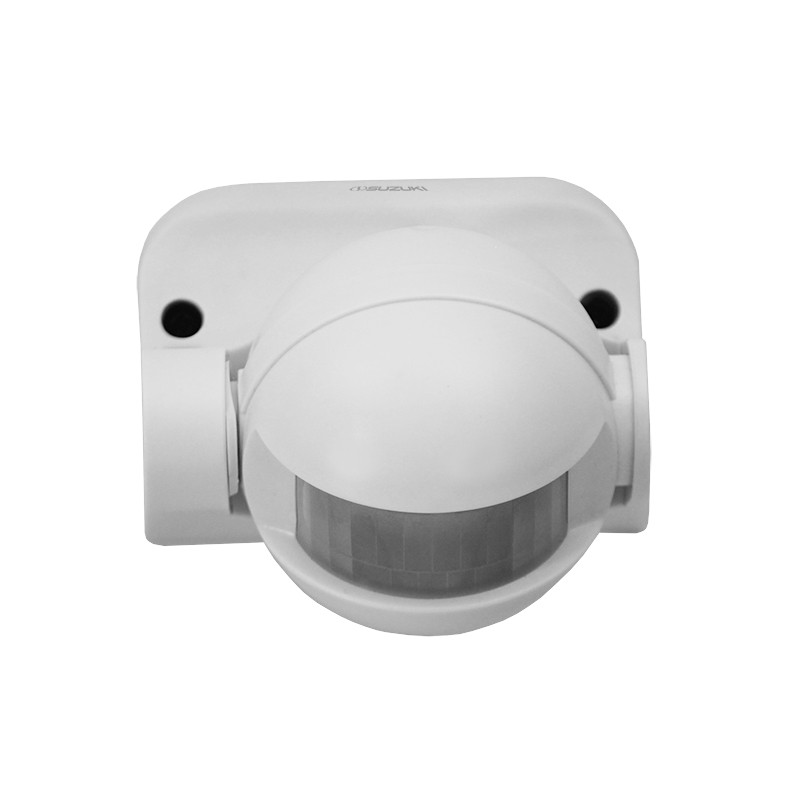

Sensor SU-PI-180WA01

Specifications

Detection Angle

180°

Detection Range

12m(＜24℃）

Time Setting

10Sec-7Min (adjustable)

Power Source

220~240V/AC  50/60Hz

Rated Load

Max.1200W

Ambient Light

<10Lux~2000 Lux (adjustable)

IP20 Dimension

(L86.5XW65.5XH83)mm
