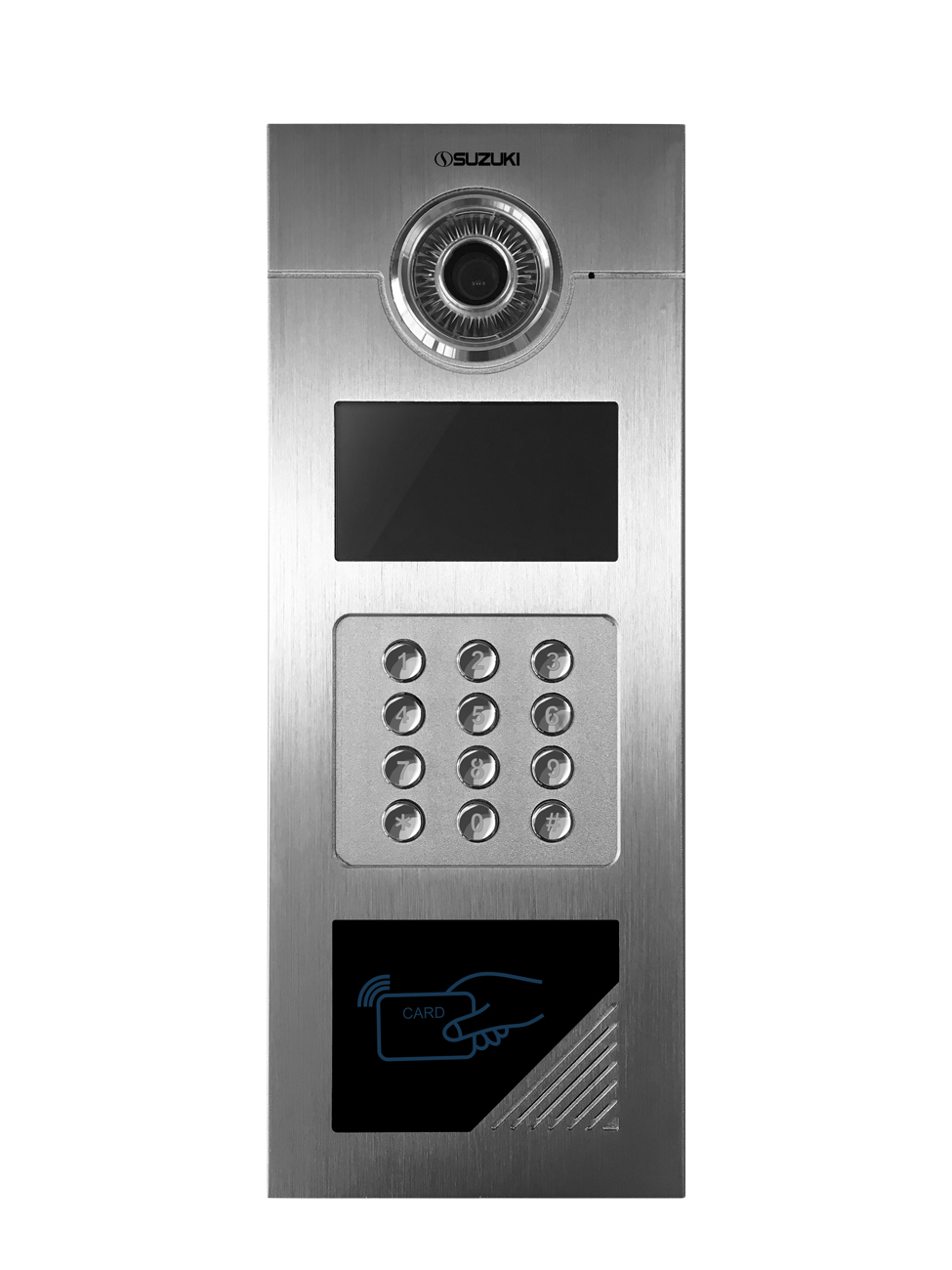

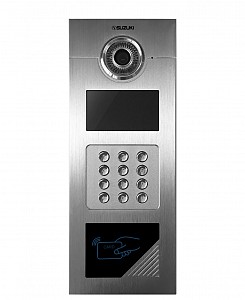

Video Outdoor Panel OP-S200NS1/Display
Specifications
Power Source
Voltage: DC 12-15V, 0.7A
Operation Temp.
-30°C ~ +50°C
Wiring
12 Wires
Display size
4.3" TFT LCD
Camera view
Horizontal: 65° Vertical: 52
Minimum illumination:
0.1LUX
Camera resolution
800 TVL
Image Sensor
HD Color C-MOS 1/3”
Lighting
Built-in LED
Dimension(mm)
359*140*59mm
Net Weight
1.570kg
Mount type
Flush-mounted type
FUNCTION
The high-quality image transmitting with HD camera
Clear voice transmitting
Luxurious and unique design
Equipped with RFID card for easy entry
Ability to define up to 2000 RFID cards to the device
Expandable up to 200 units
Equipped with 4.3” TFT LCD display
Ability to assign the unique name and code to every unit as desired
Speaker and microphone adjustability via panel setting
Applicable to install and work in diverse climate
High quality night vision provided by LED
Resistant to water and dust penetration (IP 54)
